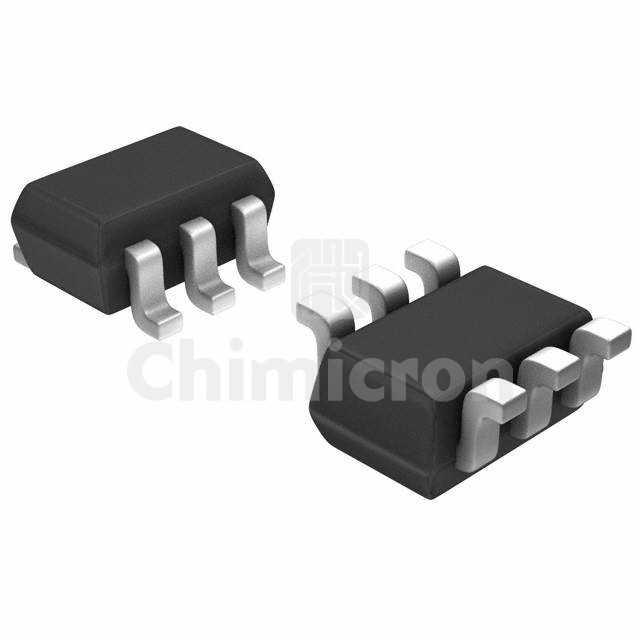

SQ1470AEH-T1_GE3
Manufacturer: Vishay / Siliconix
Description: MOSFET N-CH 30V 1.7A SOT363 SC70
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101, TrenchFET®
In Stock:550000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SQ1470AEH-T1_GE3 Vishay / Siliconix at chimicron.com. We have 550000 pieces of SQ1470AEH-T1_GE3 in stock available now. Submit an inquiry for SQ1470AEH-T1_GE3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, TrenchFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C1.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs65mOhm @ 4.2A, 4.5V
Vgs(th) (Max) @ Id1.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs5.2 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds450 pF @ 15 V
FET Feature-
Power Dissipation (Max)3.3W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-363, SC70
Package / Case6-TSSOP, SC-88, SOT-363
