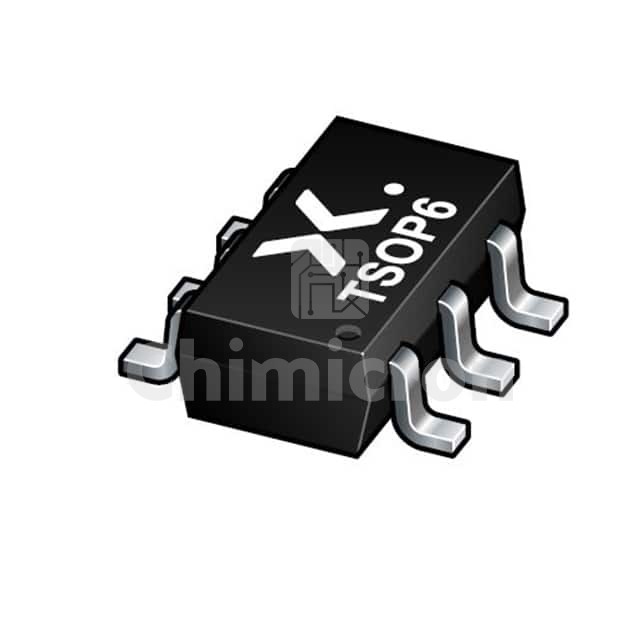

PMN55ENEAX
Manufacturer: Nexperia
Description: MOSFET N-CH 60V 3.6A 6TSOP
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101
In Stock:9555
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PMN55ENEAX Nexperia at chimicron.com. We have 9555 pieces of PMN55ENEAX in stock available now. Submit an inquiry for PMN55ENEAX or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C3.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs60mOhm @ 3.6A, 10V
Vgs(th) (Max) @ Id2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs13.2 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds450 pF @ 30 V
FET Feature-
Power Dissipation (Max)667mW (Ta), 7.5W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-TSOP
Package / CaseSC-74, SOT-457
