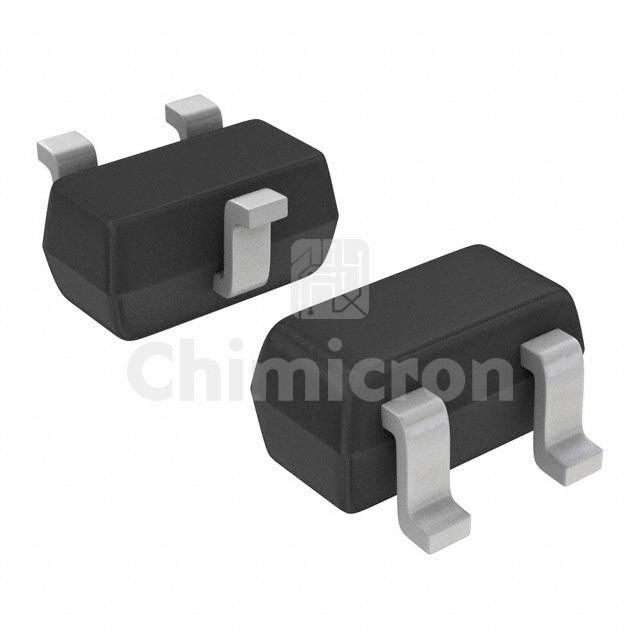

NTA4151PT1G
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET P-CH 20V 760MA SC75
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:95550
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NTA4151PT1G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 95550 pieces of NTA4151PT1G in stock available now. Submit an inquiry for NTA4151PT1G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C760mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs360mOhm @ 350mA, 4.5V
Vgs(th) (Max) @ Id450mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs2.1 nC @ 4.5 V
Vgs (Max)±6V
Input Capacitance (Ciss) (Max) @ Vds156 pF @ 5 V
FET Feature-
Power Dissipation (Max)301mW (Tj)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-75, SOT-416
Package / CaseSC-75, SOT-416
