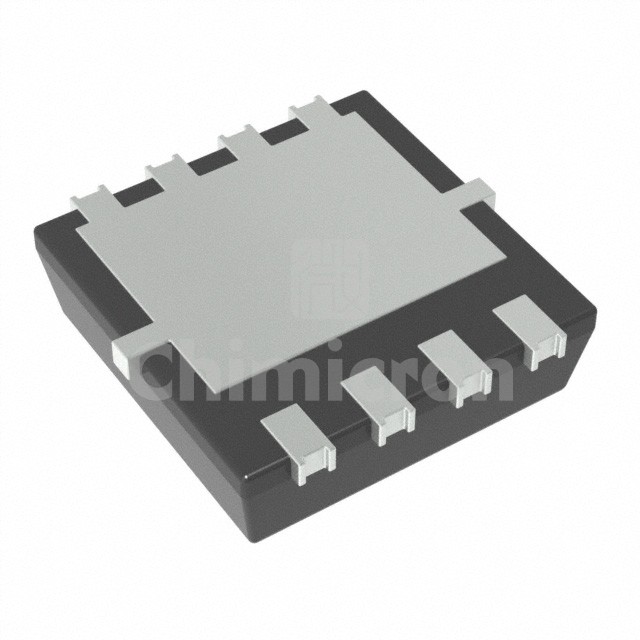

DMT47M2SFVWQ-7
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET N-CH 40V PWRDI3333
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101
In Stock:52290
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMT47M2SFVWQ-7 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 52290 pieces of DMT47M2SFVWQ-7 in stock available now. Submit an inquiry for DMT47M2SFVWQ-7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C15.4A (Ta), 49.1A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs7.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12.1 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds897 pF @ 20 V
FET Feature-
Power Dissipation (Max)2.67W (Ta), 27.1W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerDI3333-8 (SWP) Type UX
Package / Case8-PowerVDFN
