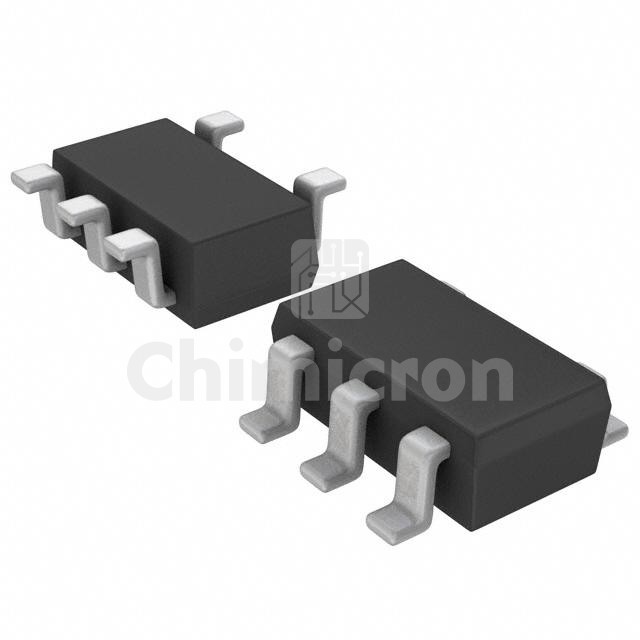

QS5U13TR
Manufacturer: ROHM Semiconductor
Description: MOSFET N-CH 30V 2A TSMT5
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:451770
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the QS5U13TR ROHM Semiconductor at chimicron.com. We have 451770 pieces of QS5U13TR in stock available now. Submit an inquiry for QS5U13TR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs100mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs3.9 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds175 pF @ 10 V
FET FeatureSchottky Diode (Isolated)
Power Dissipation (Max)1.25W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTSMT5
Package / CaseSOT-23-5 Thin, TSOT-23-5
