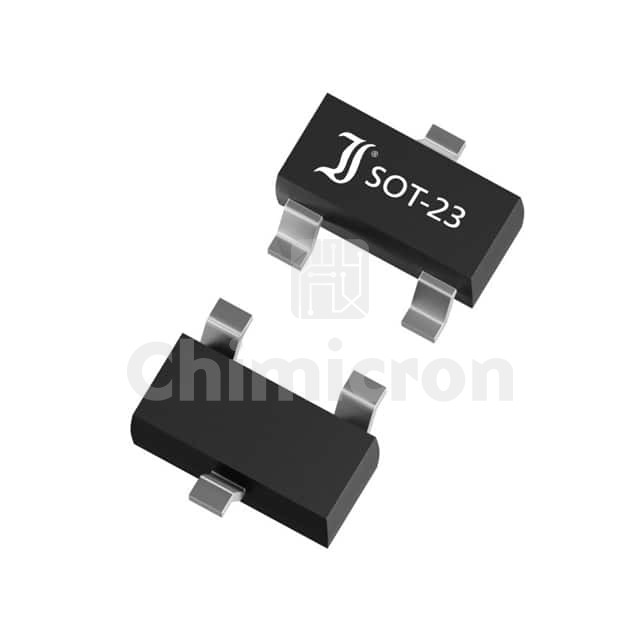

2N7002A
Manufacturer: Diotec Semiconductor
Description: MOSFET N-CH 60V 280MA SOT23-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:300000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 2N7002A Diotec Semiconductor at chimicron.com. We have 300000 pieces of 2N7002A in stock available now. Submit an inquiry for 2N7002A or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C280mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Rds On (Max) @ Id, Vgs2Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds50 pF @ 25 V
FET Feature-
Power Dissipation (Max)350mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-23-3 (TO-236)
Package / CaseTO-236-3, SC-59, SOT-23-3
