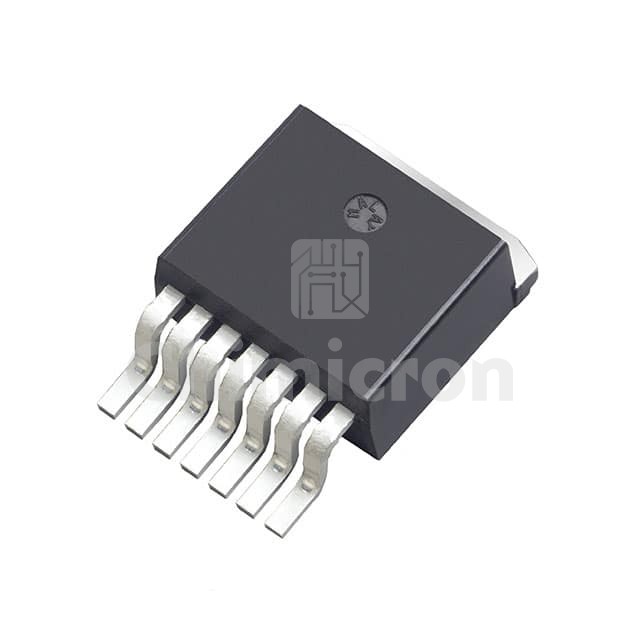

NVBG160N120SC1
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: TRANS SJT N-CH 1200V 19.5A D2PAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101
In Stock:55905
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NVBG160N120SC1 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 55905 pieces of NVBG160N120SC1 in stock available now. Submit an inquiry for NVBG160N120SC1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologySiC (Silicon Carbide Junction Transistor)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C19.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)20V
Rds On (Max) @ Id, Vgs224mOhm @ 12A, 20V
Vgs(th) (Max) @ Id4.3V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs33.8 nC @ 20 V
Vgs (Max)+25V, -15V
Input Capacitance (Ciss) (Max) @ Vds678 pF @ 800 V
FET Feature-
Power Dissipation (Max)136W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD2PAK-7
Package / CaseTO-263-8, D²Pak (7 Leads + Tab), TO-263CA
