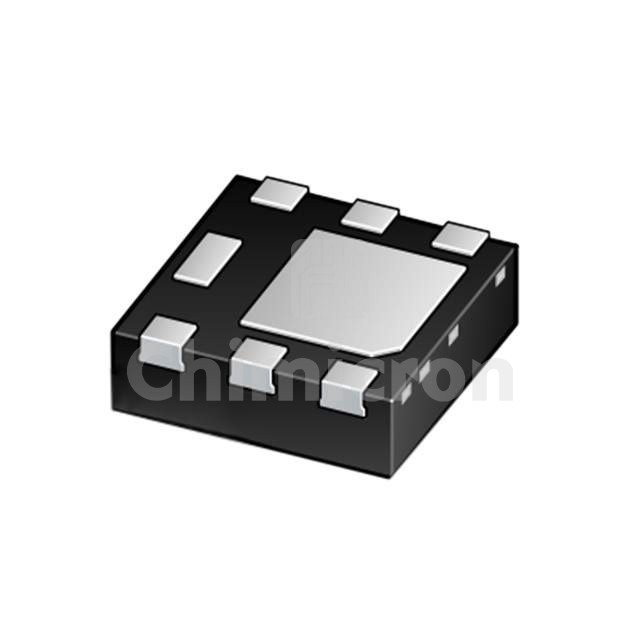

BUK6D120-60PX
Manufacturer: Nexperia
Description: MOSFET P-CH 60V 3A/8A 6DFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101, TrenchMOS™
In Stock:21000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BUK6D120-60PX Nexperia at chimicron.com. We have 21000 pieces of BUK6D120-60PX in stock available now. Submit an inquiry for BUK6D120-60PX or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, TrenchMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C3A (Ta), 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs120mOhm @ 3A, 10V
Vgs(th) (Max) @ Id3.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs18 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds724 pF @ 30 V
FET Feature-
Power Dissipation (Max)2.3W (Ta), 15W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN2020MD-6
Package / Case6-UDFN Exposed Pad
