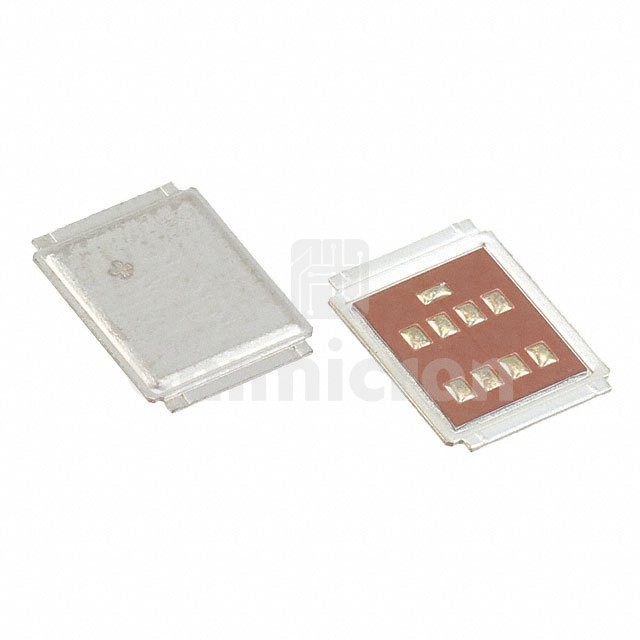

IRF7769L1TRPBF
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 100V 20A DIRECTFET
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:24150
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRF7769L1TRPBF IR (Infineon Technologies) at chimicron.com. We have 24150 pieces of IRF7769L1TRPBF in stock available now. Submit an inquiry for IRF7769L1TRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C20A (Ta), 124A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs3.5mOhm @ 74A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs300 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds11560 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.3W (Ta), 125W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDIRECTFET L8
Package / CaseDirectFET™ Isometric L8
