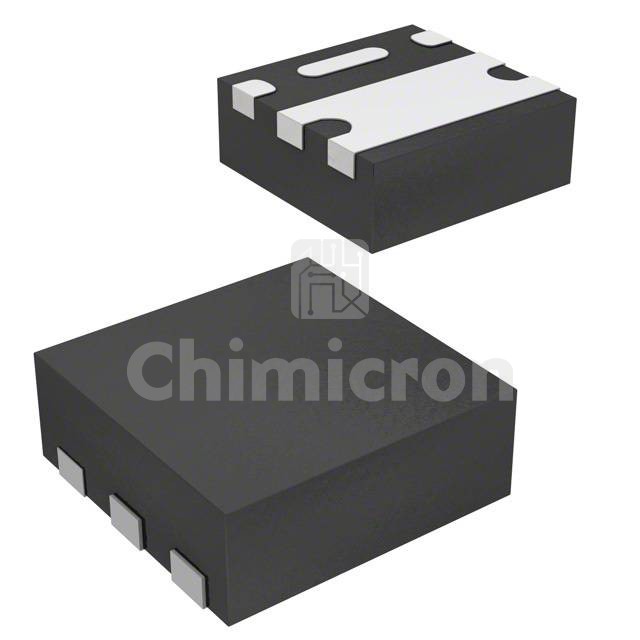

SIA466EDJ-T1-GE3
Manufacturer: Vishay / Siliconix
Description: MOSFET N-CH 20V 25A PPAK SC70-6
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: TrenchFET®
In Stock:347720
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SIA466EDJ-T1-GE3 Vishay / Siliconix at chimicron.com. We have 347720 pieces of SIA466EDJ-T1-GE3 in stock available now. Submit an inquiry for SIA466EDJ-T1-GE3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesTrenchFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C25A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs9.5mOhm @ 9A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs20 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds620 pF @ 1 V
FET Feature-
Power Dissipation (Max)3.5W (Ta), 19.2W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerPAK® SC-70-6 Single
Package / CasePowerPAK® SC-70-6
