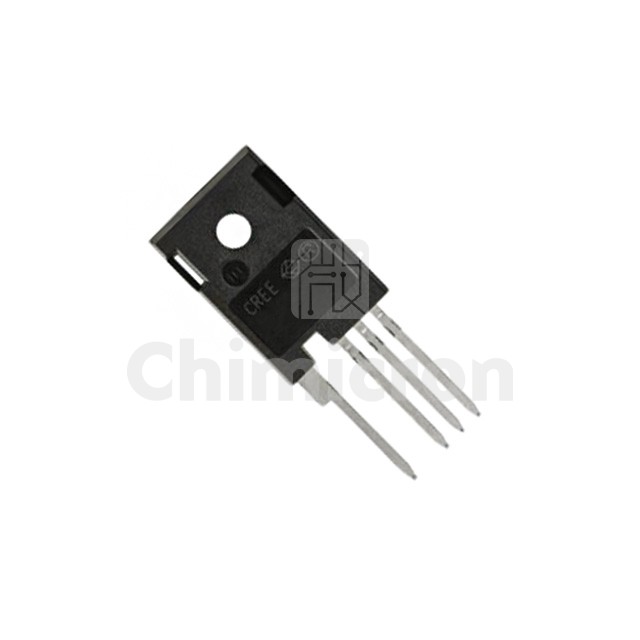

C3M0021120K
Manufacturer: Wolfspeed - a Cree company
Description: SICFET N-CH 1200V 100A TO247-4L
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: C3M™
In Stock:5198
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the C3M0021120K Wolfspeed - a Cree company at chimicron.com. We have 5198 pieces of C3M0021120K in stock available now. Submit an inquiry for C3M0021120K or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesC3M™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)15V
Rds On (Max) @ Id, Vgs28.8mOhm @ 50A, 15V
Vgs(th) (Max) @ Id3.6V @ 17.7mA
Gate Charge (Qg) (Max) @ Vgs162 nC @ 15 V
Vgs (Max)+15V, -4V
Input Capacitance (Ciss) (Max) @ Vds4818 pF @ 1000 V
FET Feature-
Power Dissipation (Max)469W (Tc)
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-4L
Package / CaseTO-247-4
