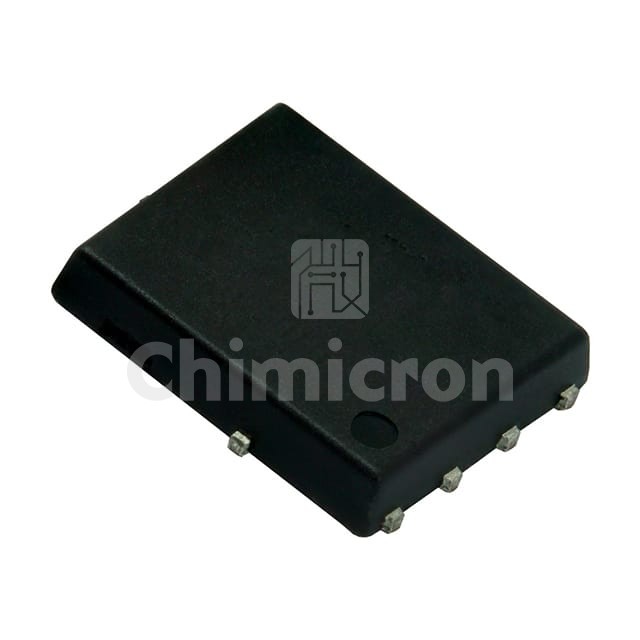

SIR510DP-T1-RE3
Manufacturer: Vishay / Siliconix
Description: N-CHANNEL 100 V (D-S) MOSFET POW
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: TrenchFET® Gen V
In Stock:4092
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SIR510DP-T1-RE3 Vishay / Siliconix at chimicron.com. We have 4092 pieces of SIR510DP-T1-RE3 in stock available now. Submit an inquiry for SIR510DP-T1-RE3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesTrenchFET® Gen V
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C31A (Ta), 126A (Tc)
Drive Voltage (Max Rds On, Min Rds On)7.5V, 10V
Rds On (Max) @ Id, Vgs3.6mOhm @ 20A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs81 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4980 pF @ 50 V
FET Feature-
Power Dissipation (Max)6.25W (Ta), 104W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerPAK® SO-8
Package / CasePowerPAK® SO-8
