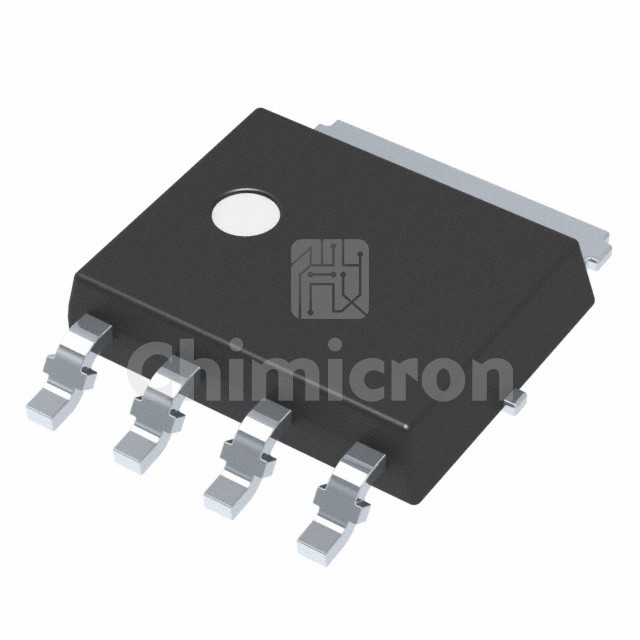

NVMYS025N06CLTWG
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 60V 8.5A/21A 4LFPAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101
In Stock:4400
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NVMYS025N06CLTWG Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 4400 pieces of NVMYS025N06CLTWG in stock available now. Submit an inquiry for NVMYS025N06CLTWG or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C8.5A (Ta), 21A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs27.5mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id2V @ 13µA
Gate Charge (Qg) (Max) @ Vgs5.8 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds330 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.8W (Ta), 24W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package4-LFPAK
Package / CaseSOT-1023, 4-LFPAK
