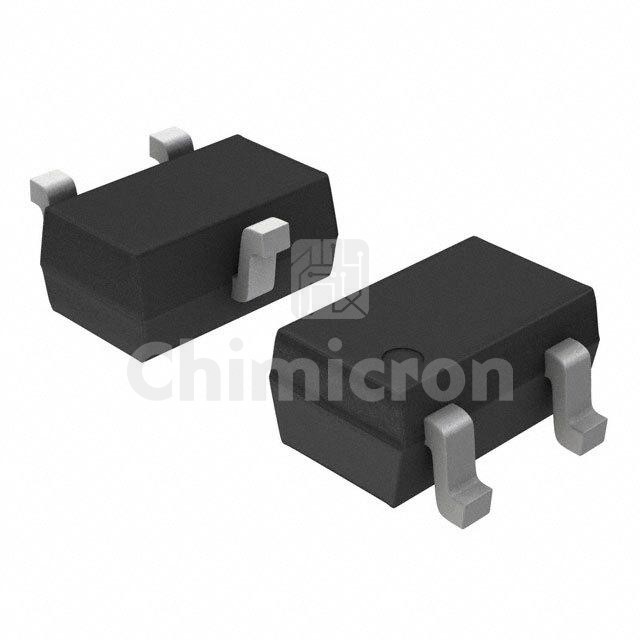

NVS4409NT1G
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 25V 700MA SC70-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:500000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NVS4409NT1G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 500000 pieces of NVS4409NT1G in stock available now. Submit an inquiry for NVS4409NT1G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C700mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.7V, 4.5V
Rds On (Max) @ Id, Vgs350mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs1.5 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds60 pF @ 10 V
FET Feature-
Power Dissipation (Max)280mW (Tj)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-70-3 (SOT323)
Package / CaseSC-70, SOT-323
