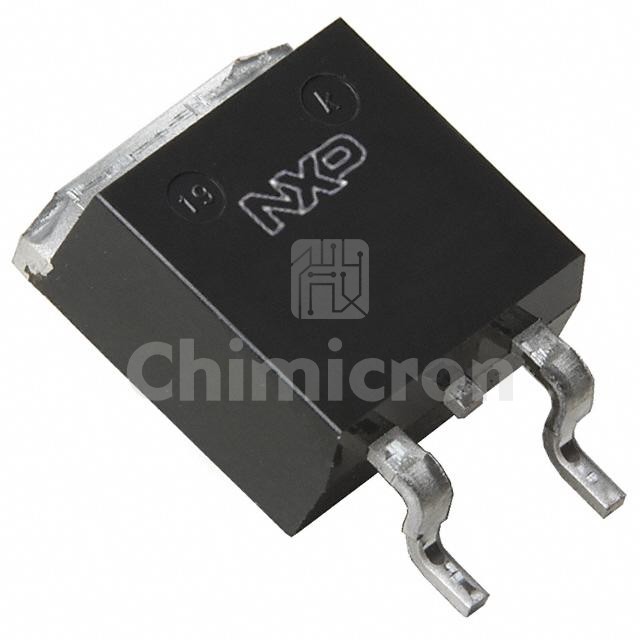

PSMN1R5-30BLEJ
Manufacturer: Nexperia
Description: MOSFET N-CH 30V 120A D2PAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:1500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PSMN1R5-30BLEJ Nexperia at chimicron.com. We have 1500 pieces of PSMN1R5-30BLEJ in stock available now. Submit an inquiry for PSMN1R5-30BLEJ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.5mOhm @ 25A, 10V
Vgs(th) (Max) @ Id2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs228 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds14934 pF @ 15 V
FET Feature-
Power Dissipation (Max)401W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD2PAK
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
