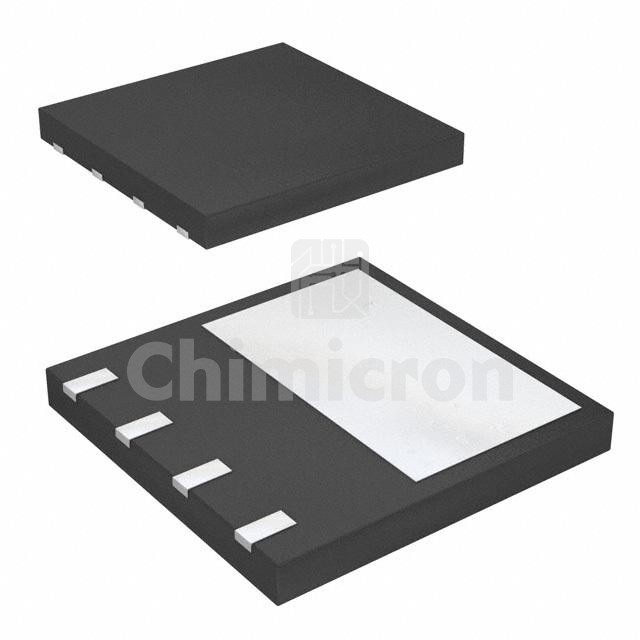

STL24N60DM2
Manufacturer: STMicroelectronics
Description: MOSFET N-CH 600V 15A PWRFLAT HV
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: MDmesh™ DM2
In Stock:57013
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STL24N60DM2 STMicroelectronics at chimicron.com. We have 57013 pieces of STL24N60DM2 in stock available now. Submit an inquiry for STL24N60DM2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesMDmesh™ DM2
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs220mOhm @ 9A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs29 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds1055 pF @ 100 V
FET Feature-
Power Dissipation (Max)125W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (8x8) HV
Package / Case8-PowerVDFN
