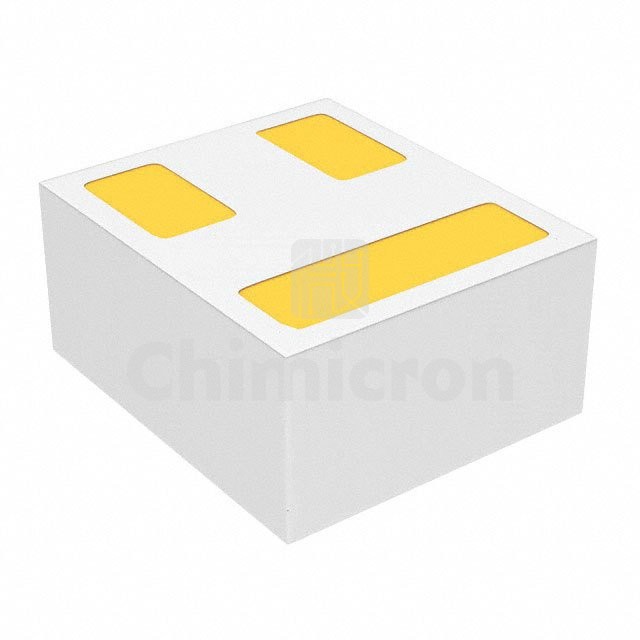

CSD25480F3
Manufacturer: Texas
Description: MOSFET P-CH 20V 1.7A 3PICOSTAR
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: FemtoFET™
In Stock:254100
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD25480F3 Texas at chimicron.com. We have 254100 pieces of CSD25480F3 in stock available now. Submit an inquiry for CSD25480F3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesFemtoFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C1.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 8V
Rds On (Max) @ Id, Vgs132mOhm @ 400mA, 8V
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.91 nC @ 4.5 V
Vgs (Max)-12V
Input Capacitance (Ciss) (Max) @ Vds155 pF @ 10 V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package3-PICOSTAR
Package / Case3-SMD, No Lead
