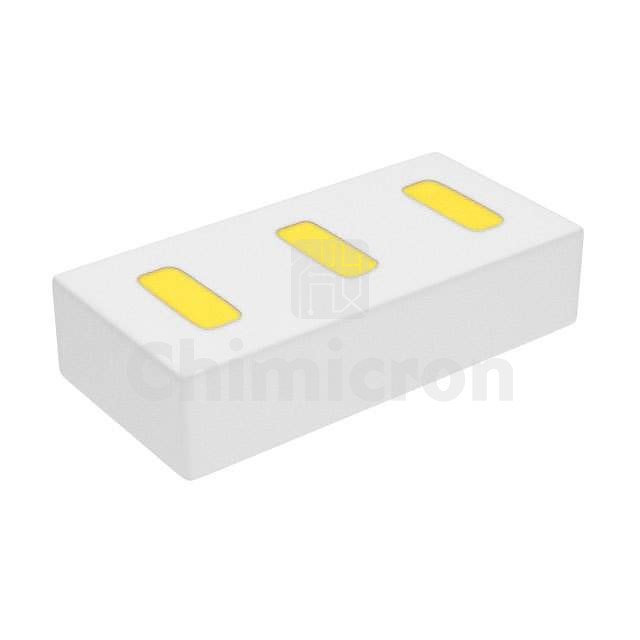

CSD18541F5
Manufacturer: Texas
Description: MOSFET N-CH 60V 2.2A 3PICOSTAR
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: FemtoFET™
In Stock:688023
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD18541F5 Texas at chimicron.com. We have 688023 pieces of CSD18541F5 in stock available now. Submit an inquiry for CSD18541F5 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesFemtoFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C2.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs65mOhm @ 1A, 10V
Vgs(th) (Max) @ Id2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs14 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds777 pF @ 30 V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package3-PICOSTAR
Package / Case3-SMD, No Lead
