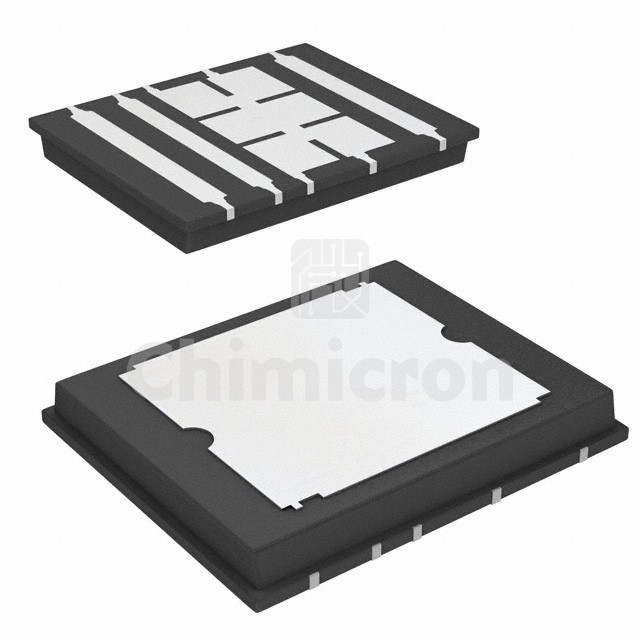

SIE810DF-T1-E3
Manufacturer: Vishay / Siliconix
Description: MOSFET N-CH 20V 60A 10POLARPAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: TrenchFET®
In Stock:102253
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SIE810DF-T1-E3 Vishay / Siliconix at chimicron.com. We have 102253 pieces of SIE810DF-T1-E3 in stock available now. Submit an inquiry for SIE810DF-T1-E3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesTrenchFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 10V
Rds On (Max) @ Id, Vgs1.4mOhm @ 25A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs300 nC @ 10 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds13000 pF @ 10 V
FET Feature-
Power Dissipation (Max)5.2W (Ta), 125W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package10-PolarPAK® (L)
Package / Case10-PolarPAK® (L)
