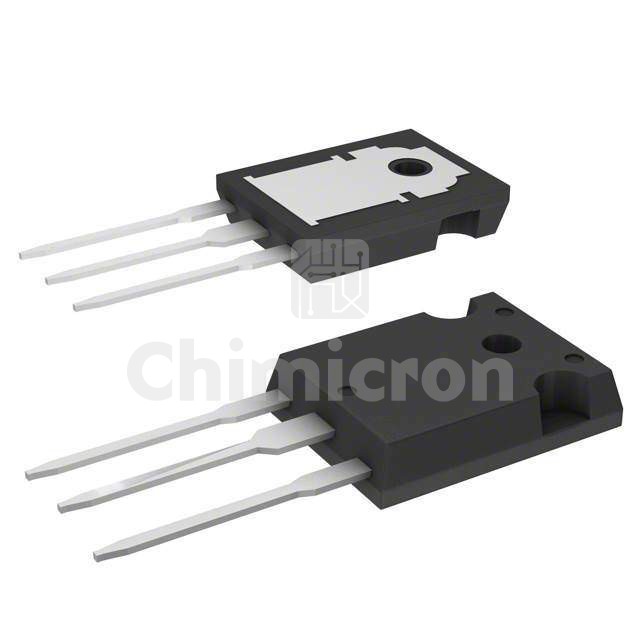

STW56N65DM2
Manufacturer: STMicroelectronics
Description: MOSFET N-CH 650V 48A TO247
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: MDmesh™ DM2
In Stock:210
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STW56N65DM2 STMicroelectronics at chimicron.com. We have 210 pieces of STW56N65DM2 in stock available now. Submit an inquiry for STW56N65DM2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesMDmesh™ DM2
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)650 V
Current - Continuous Drain (Id) @ 25°C48A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs65mOhm @ 24A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs88 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds4100 pF @ 100 V
FET Feature-
Power Dissipation (Max)360W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247
Package / CaseTO-247-3
