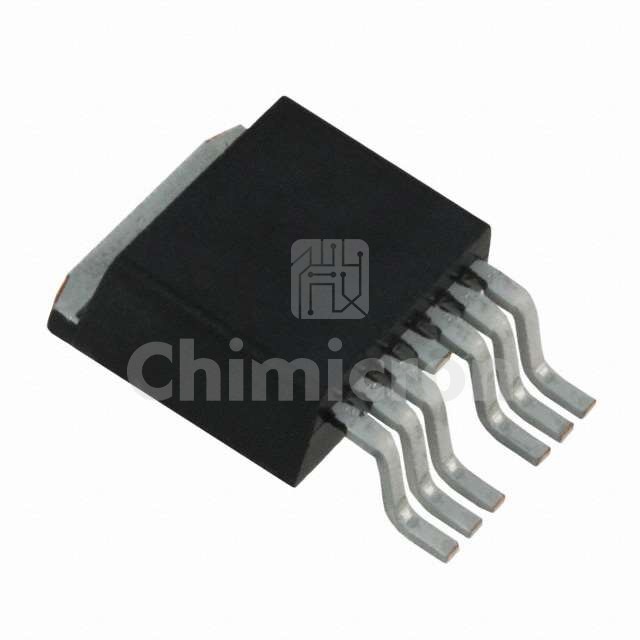

IPB160N04S4H1ATMA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 40V 160A TO263-7
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: OptiMOS™
In Stock:93489
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPB160N04S4H1ATMA1 IR (Infineon Technologies) at chimicron.com. We have 93489 pieces of IPB160N04S4H1ATMA1 in stock available now. Submit an inquiry for IPB160N04S4H1ATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C160A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.6mOhm @ 100A, 10V
Vgs(th) (Max) @ Id4V @ 110µA
Gate Charge (Qg) (Max) @ Vgs137 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds10920 pF @ 25 V
FET Feature-
Power Dissipation (Max)167W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO263-7-3
Package / CaseTO-263-7, D²Pak (6 Leads + Tab)
