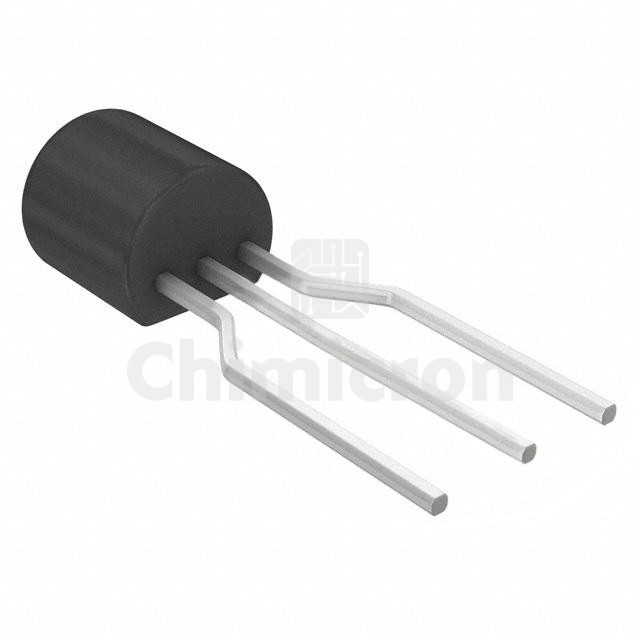

STQ1NK60ZR-AP
Manufacturer: STMicroelectronics
Description: MOSFET N-CH 600V 300MA TO92-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: SuperMESH™
In Stock:498855
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STQ1NK60ZR-AP STMicroelectronics at chimicron.com. We have 498855 pieces of STQ1NK60ZR-AP in stock available now. Submit an inquiry for STQ1NK60ZR-AP or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSuperMESH™
PackageCut Tape (CT)Tape & Box (TB)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C300mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs15Ohm @ 400mA, 10V
Vgs(th) (Max) @ Id4.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs6.9 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds94 pF @ 25 V
FET Feature-
Power Dissipation (Max)3W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-92-3
Package / CaseTO-226-3, TO-92-3 (TO-226AA)
