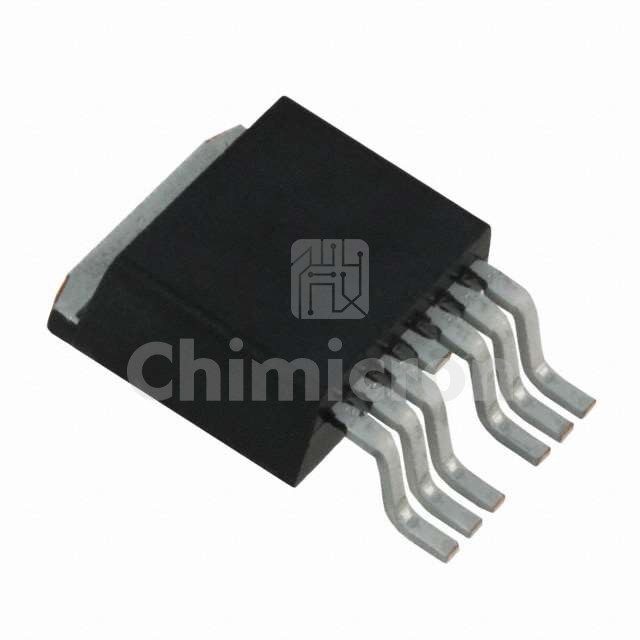

IPB036N12N3GATMA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 120V 180A TO263-7
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: OptiMOS™
In Stock:125000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPB036N12N3GATMA1 IR (Infineon Technologies) at chimicron.com. We have 125000 pieces of IPB036N12N3GATMA1 in stock available now. Submit an inquiry for IPB036N12N3GATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)120 V
Current - Continuous Drain (Id) @ 25°C180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs3.6mOhm @ 100A, 10V
Vgs(th) (Max) @ Id4V @ 270µA
Gate Charge (Qg) (Max) @ Vgs211 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds13800 pF @ 60 V
FET Feature-
Power Dissipation (Max)300W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO263-7
Package / CaseTO-263-7, D²Pak (6 Leads + Tab), TO-263CB
