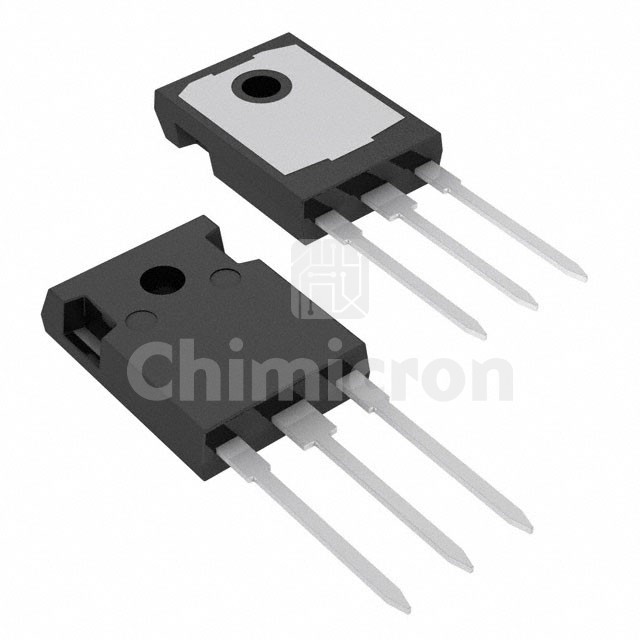

STWA48N60DM2
Manufacturer: STMicroelectronics
Description: MOSFET N-CH 600V 40A TO247
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: MDmesh™ DM2
In Stock:1000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STWA48N60DM2 STMicroelectronics at chimicron.com. We have 1000 pieces of STWA48N60DM2 in stock available now. Submit an inquiry for STWA48N60DM2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesMDmesh™ DM2
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs79mOhm @ 20A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs70 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds3250 pF @ 100 V
FET Feature-
Power Dissipation (Max)300W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247 Long Leads
Package / CaseTO-247-3
