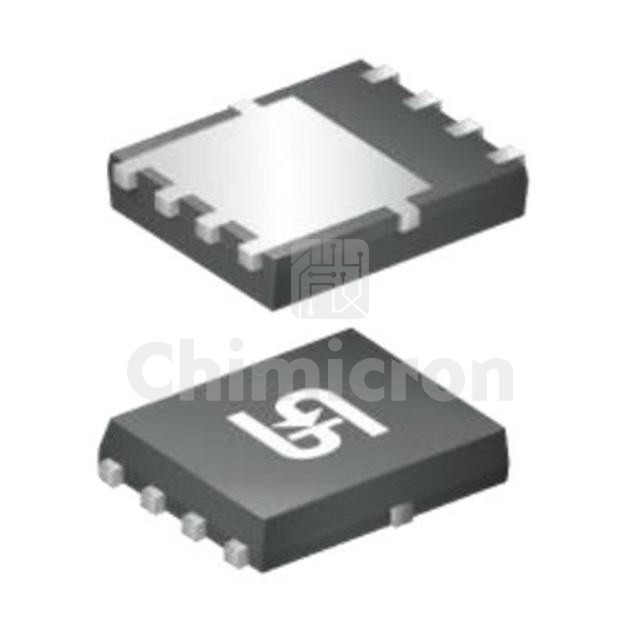

TQM050NB06CR RLG
Manufacturer: TSC (Taiwan Semiconductor)
Description: MOSFET N-CH 60V 16A/104A PDFN56U
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101
In Stock:3779
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TQM050NB06CR RLG TSC (Taiwan Semiconductor) at chimicron.com. We have 3779 pieces of TQM050NB06CR RLG in stock available now. Submit an inquiry for TQM050NB06CR RLG or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C16A (Ta), 104A (Tc)
Drive Voltage (Max Rds On, Min Rds On)7V, 10V
Rds On (Max) @ Id, Vgs5mOhm @ 16A, 10V
Vgs(th) (Max) @ Id3.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs114 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6904 pF @ 30 V
FET Feature-
Power Dissipation (Max)3.1W (Ta), 136W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount, Wettable Flank
Supplier Device PackagePDFN56U
Package / Case8-PowerTDFN
