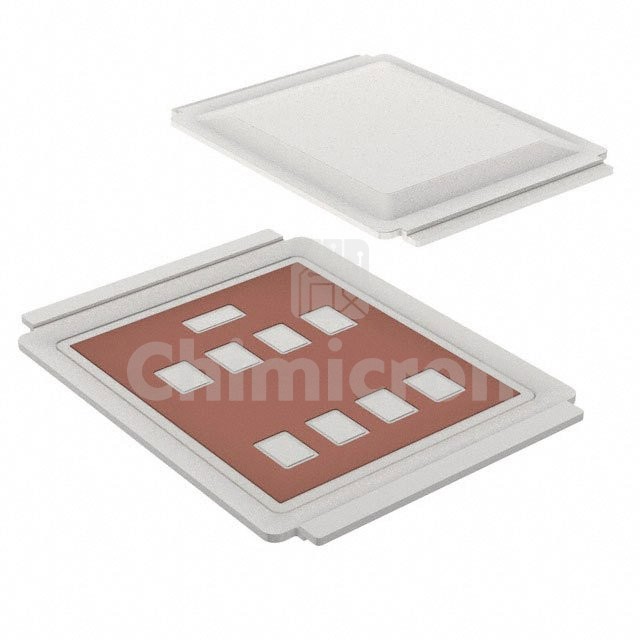

IRL7472L1TRPBF
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 40V 375A DIRECTFET
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: StrongIRFET™
In Stock:3781
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRL7472L1TRPBF IR (Infineon Technologies) at chimicron.com. We have 3781 pieces of IRL7472L1TRPBF in stock available now. Submit an inquiry for IRL7472L1TRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesStrongIRFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C375A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs0.59mOhm @ 195A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs330 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds20082 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.8W (Ta), 341W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDIRECTFET L8
Package / CaseDirectFET™ Isometric L8
