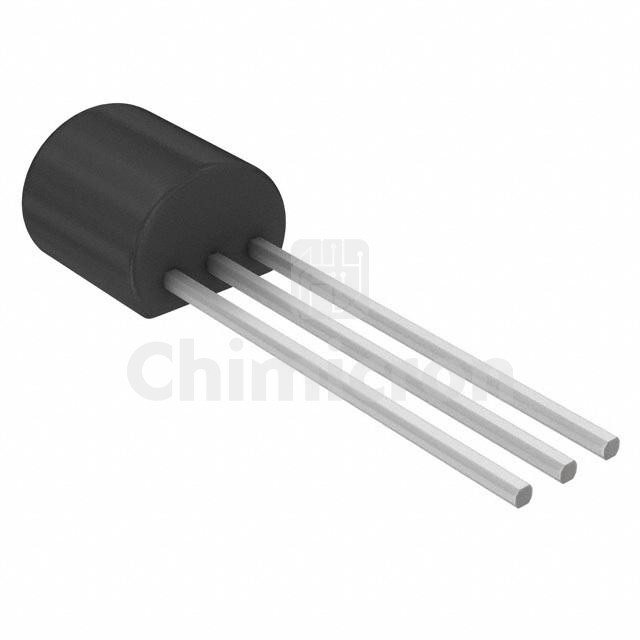

ZVNL110ASTZ
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET N-CH 100V 320MA E-LINE
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:800000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ZVNL110ASTZ Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 800000 pieces of ZVNL110ASTZ in stock available now. Submit an inquiry for ZVNL110ASTZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageCut Tape (CT)Tape & Box (TB)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C320mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Rds On (Max) @ Id, Vgs3Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id1.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds75 pF @ 25 V
FET Feature-
Power Dissipation (Max)700mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageE-Line (TO-92 compatible)
Package / CaseE-Line-3
