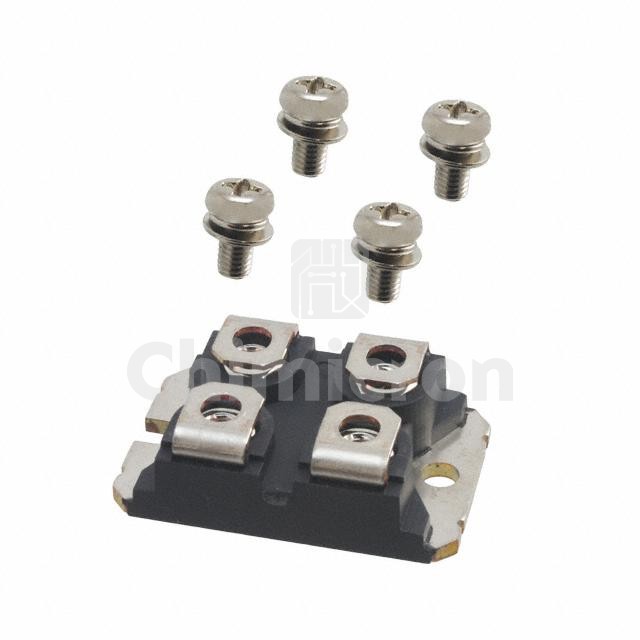

IXFN70N60Q2
Manufacturer: Wickmann / Littelfuse
Description: MOSFET N-CH 600V 70A SOT-227B
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HiPerFET™
In Stock:30
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IXFN70N60Q2 Wickmann / Littelfuse at chimicron.com. We have 30 pieces of IXFN70N60Q2 in stock available now. Submit an inquiry for IXFN70N60Q2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHiPerFET™
PackageTube
Part StatusNot For New Designs
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs80mOhm @ 35A, 10V
Vgs(th) (Max) @ Id5V @ 8mA
Gate Charge (Qg) (Max) @ Vgs265 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds7200 pF @ 25 V
FET Feature-
Power Dissipation (Max)890W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Supplier Device PackageSOT-227B
Package / CaseSOT-227-4, miniBLOC
