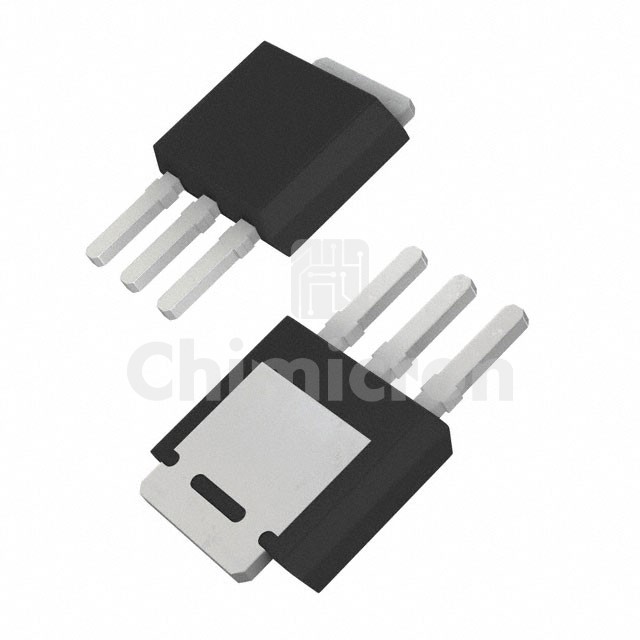

NDD02N60Z-1G
Manufacturer: Rochester Electronics
Description: MOSFET N-CH 600V 2.2A IPAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:8000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NDD02N60Z-1G Rochester Electronics at chimicron.com. We have 8000 pieces of NDD02N60Z-1G in stock available now. Submit an inquiry for NDD02N60Z-1G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C2.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs4.8Ohm @ 1A, 10V
Vgs(th) (Max) @ Id4.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs10.1 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds274 pF @ 25 V
FET Feature-
Power Dissipation (Max)57W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI-PAK
Package / CaseTO-251-3 Short Leads, IPak, TO-251AA
