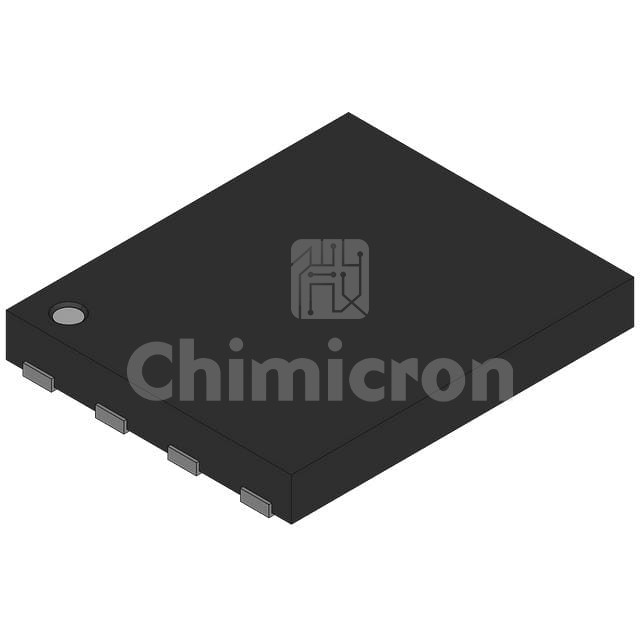

FDMC8015L
Manufacturer: Rochester Electronics
Description: POWER FIELD-EFFECT TRANSISTOR, 7
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: PowerTrench®
In Stock:103000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDMC8015L Rochester Electronics at chimicron.com. We have 103000 pieces of FDMC8015L in stock available now. Submit an inquiry for FDMC8015L or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPowerTrench®
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C7A (Ta), 18A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs26mOhm @ 7A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs19 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds945 pF @ 20 V
FET Feature-
Power Dissipation (Max)2.3W (Ta), 24W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-MLP (3.3x3.3)
Package / Case8-PowerWDFN
