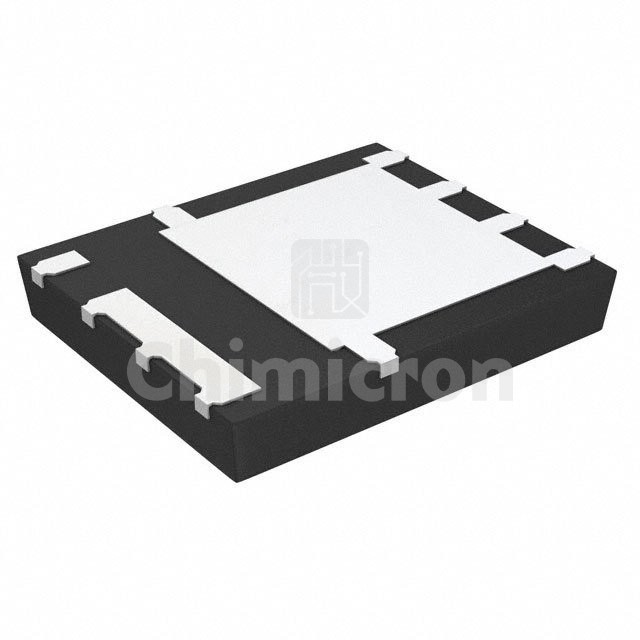

BSZ0602LSATMA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 80V 13A/40A TSDSON
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: OptiMOS™ 5
In Stock:6000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BSZ0602LSATMA1 IR (Infineon Technologies) at chimicron.com. We have 6000 pieces of BSZ0602LSATMA1 in stock available now. Submit an inquiry for BSZ0602LSATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOptiMOS™ 5
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)80 V
Current - Continuous Drain (Id) @ 25°C13A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs7mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.3V @ 36µA
Gate Charge (Qg) (Max) @ Vgs18 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2340 pF @ 40 V
FET Feature-
Power Dissipation (Max)69W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TSDSON-8-FL
Package / Case8-PowerTDFN
