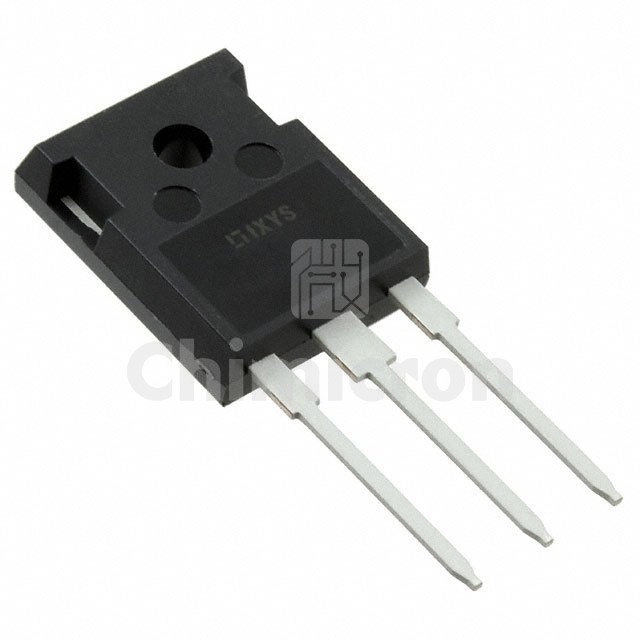

IXFH120N20P
IXFH120N20P

Manufacturer: Wickmann / Littelfuse

Description: MOSFET N-CH 200V 120A TO247AD
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HiPerFET™, PolarP2™
In Stock:3000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IXFH120N20P Wickmann / Littelfuse at chimicron.com. We have 3000 pieces of IXFH120N20P in stock available now. Submit an inquiry for IXFH120N20P or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHiPerFET™, PolarP2™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)200 V
Current - Continuous Drain (Id) @ 25°C120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs22mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs152 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6000 pF @ 25 V
FET Feature-
Power Dissipation (Max)714W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247AD (IXFH)
Package / CaseTO-247-3
