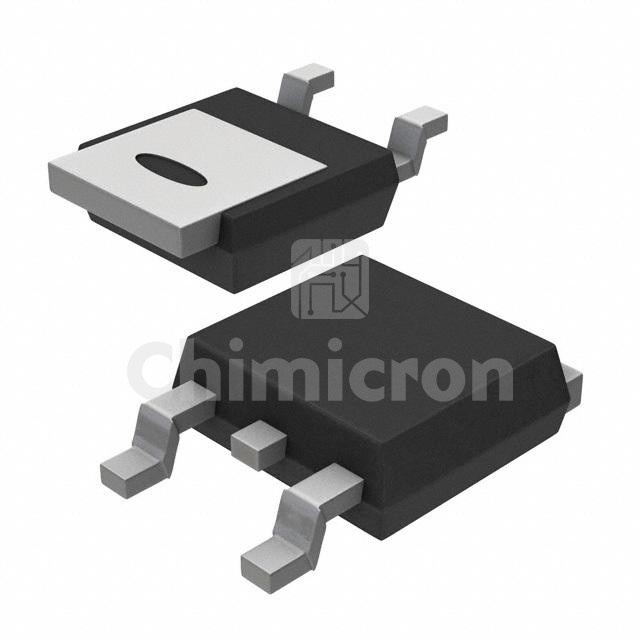

PSMN025-100D,118
Manufacturer: Rochester Electronics
Description: POWER FIELD-EFFECT TRANSISTOR, 4
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: TrenchMOS™
In Stock:22000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PSMN025-100D,118 Rochester Electronics at chimicron.com. We have 22000 pieces of PSMN025-100D,118 in stock available now. Submit an inquiry for PSMN025-100D,118 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesTrenchMOS™
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C47A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs25mOhm @ 25A, 10V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs61 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2.6 pF @ 25 V
FET Feature-
Power Dissipation (Max)150W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDPAK
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
