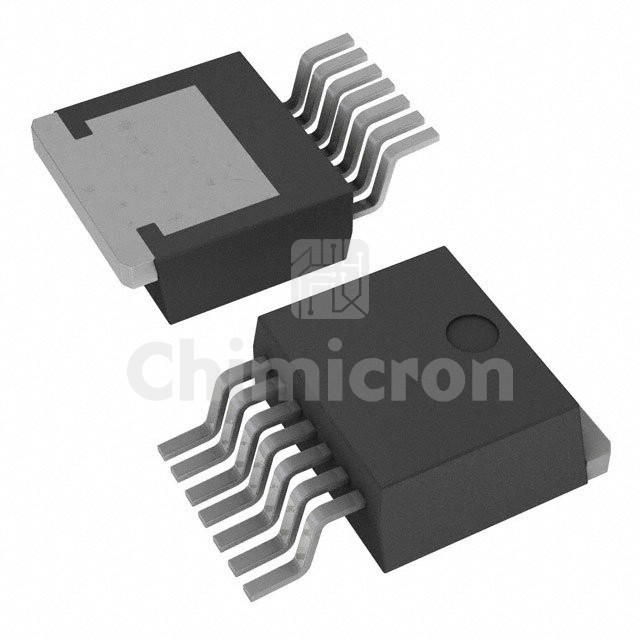

SCTH100N65G2-7AG
Manufacturer: STMicroelectronics
Description: SICFET N-CH 650V 95A H2PAK-7
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101
In Stock:1745
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SCTH100N65G2-7AG STMicroelectronics at chimicron.com. We have 1745 pieces of SCTH100N65G2-7AG in stock available now. Submit an inquiry for SCTH100N65G2-7AG or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)650 V
Current - Continuous Drain (Id) @ 25°C95A (Tc)
Drive Voltage (Max Rds On, Min Rds On)18V
Rds On (Max) @ Id, Vgs26mOhm @ 50A, 18V
Vgs(th) (Max) @ Id5V @ 5mA
Gate Charge (Qg) (Max) @ Vgs162 nC @ 18 V
Vgs (Max)+22V, -10V
Input Capacitance (Ciss) (Max) @ Vds3315 pF @ 520 V
FET Feature-
Power Dissipation (Max)360W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageH2PAK-7
Package / CaseTO-263-8, D²Pak (7 Leads + Tab), TO-263CA
