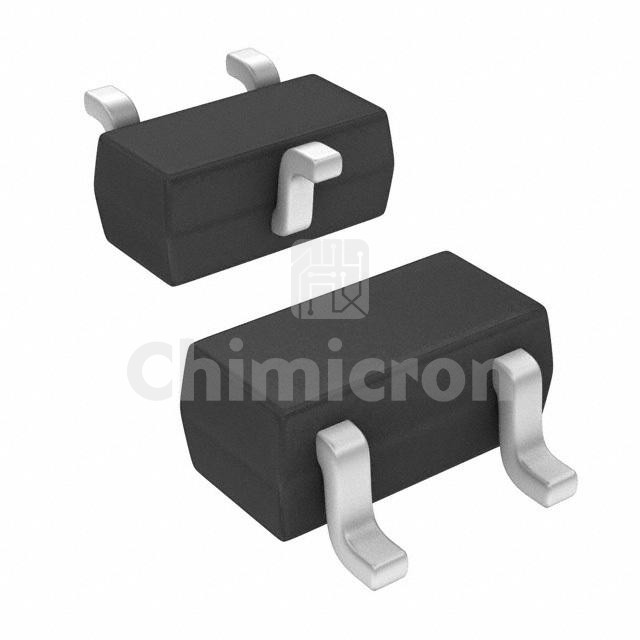

SSM3K56FS,LF
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: MOSFET N-CH 20V 800MA SSM
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: U-MOSVII-H
In Stock:154350
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SSM3K56FS,LF Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 154350 pieces of SSM3K56FS,LF in stock available now. Submit an inquiry for SSM3K56FS,LF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesU-MOSVII-H
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C800mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs235mOhm @ 800mA, 4.5V
Vgs(th) (Max) @ Id1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs1 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds55 pF @ 10 V
FET Feature-
Power Dissipation (Max)150mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSSM
Package / CaseSC-75, SOT-416
