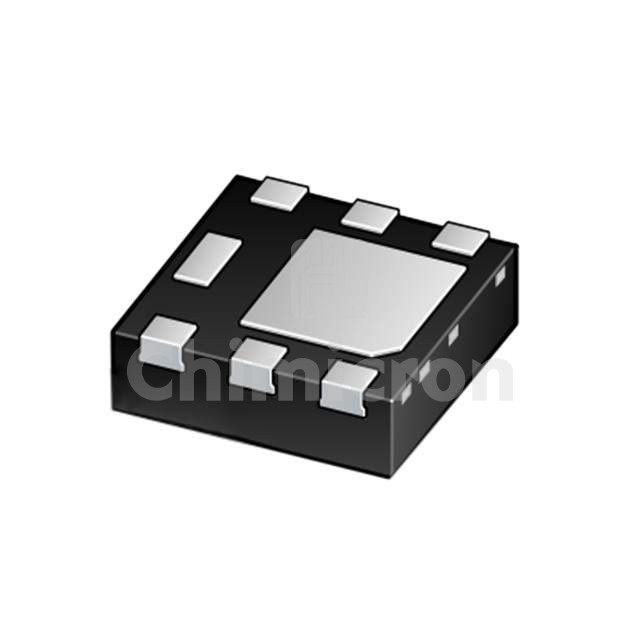

PMPB85ENEAX
Manufacturer: Nexperia
Description: MOSFET N-CH 60V 3A DFN2020MD-6
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:18076
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PMPB85ENEAX Nexperia at chimicron.com. We have 18076 pieces of PMPB85ENEAX in stock available now. Submit an inquiry for PMPB85ENEAX or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs95mOhm @ 3A, 10V
Vgs(th) (Max) @ Id2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs9.2 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds305 pF @ 30 V
FET Feature-
Power Dissipation (Max)1.6W (Ta), 15.6W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN2020MD-6
Package / Case6-UDFN Exposed Pad
