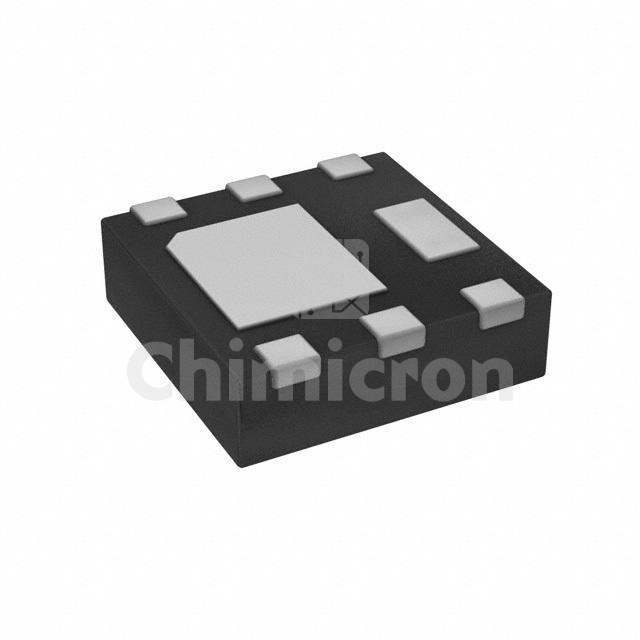

DMN3020UFDF-7
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET N-CH 30V 15A 6UDFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:523069
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMN3020UFDF-7 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 523069 pieces of DMN3020UFDF-7 in stock available now. Submit an inquiry for DMN3020UFDF-7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs19mOhm @ 4.5A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs27 nC @ 8 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds1304 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.03W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageU-DFN2020-6 (Type F)
Package / Case6-UDFN Exposed Pad
