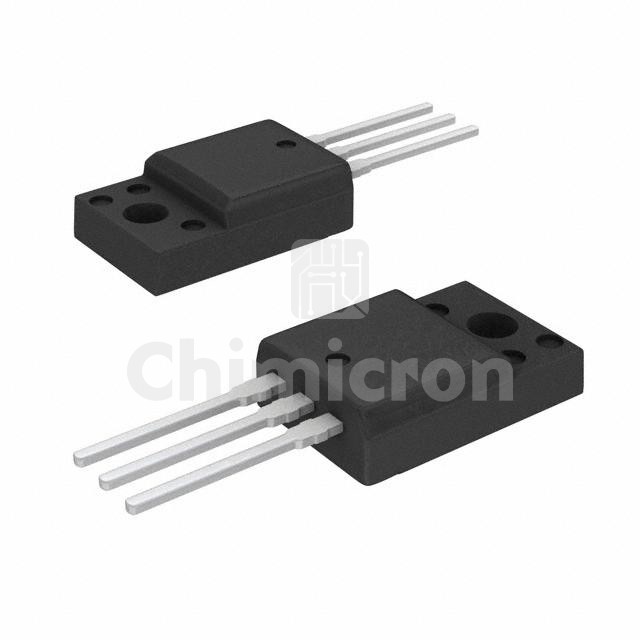

FDPF10N60NZ
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 600V 10A TO220F
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: UniFET-II™
In Stock:525
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDPF10N60NZ Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 525 pieces of FDPF10N60NZ in stock available now. Submit an inquiry for FDPF10N60NZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesUniFET-II™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C10A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs750mOhm @ 5A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs30 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds1475 pF @ 25 V
FET Feature-
Power Dissipation (Max)38W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220F
Package / CaseTO-220-3 Full Pack
