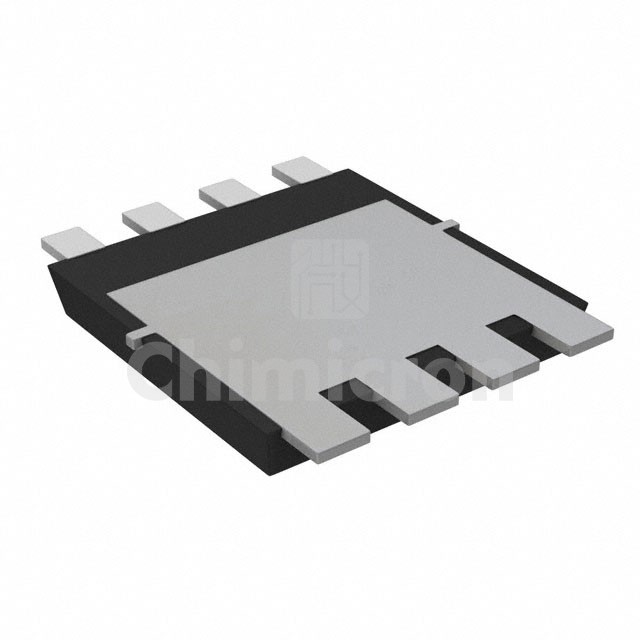

TPW4R50ANH,L1Q
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: MOSFET N-CH 100V 92A 8DSOP
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: U-MOSVIII-H
In Stock:5250
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPW4R50ANH,L1Q Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 5250 pieces of TPW4R50ANH,L1Q in stock available now. Submit an inquiry for TPW4R50ANH,L1Q or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesU-MOSVIII-H
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C92A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs4.5mOhm @ 46A, 10V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs58 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5200 pF @ 50 V
FET Feature-
Power Dissipation (Max)800mW (Ta), 142W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DSOP Advance
Package / Case8-PowerVDFN
