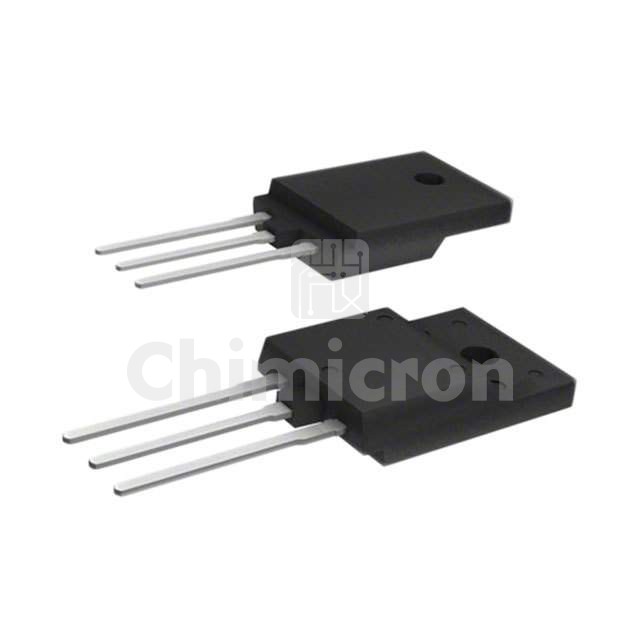

IPA70R360P7SXKSA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 700V 12.5A TO220
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: CoolMOS™ P7
In Stock:5000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPA70R360P7SXKSA1 IR (Infineon Technologies) at chimicron.com. We have 5000 pieces of IPA70R360P7SXKSA1 in stock available now. Submit an inquiry for IPA70R360P7SXKSA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesCoolMOS™ P7
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)700 V
Current - Continuous Drain (Id) @ 25°C12.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs360mOhm @ 3A, 10V
Vgs(th) (Max) @ Id3.5V @ 150µA
Gate Charge (Qg) (Max) @ Vgs16.4 nC @ 10 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds517 pF @ 400 V
FET Feature-
Power Dissipation (Max)26.4W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO220 Full Pack
Package / CaseTO-220-3 Full Pack
