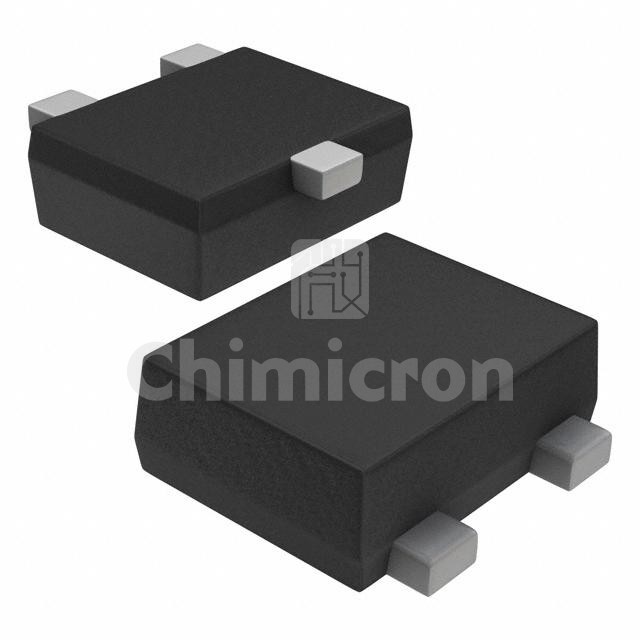

MCH3481-TL-W
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 20V 2A SC70FL/MCPH3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:18900
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MCH3481-TL-W Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 18900 pieces of MCH3481-TL-W in stock available now. Submit an inquiry for MCH3481-TL-W or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.2V, 4.5V
Rds On (Max) @ Id, Vgs104mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id900mV @ 1mA
Gate Charge (Qg) (Max) @ Vgs2.9 nC @ 4.5 V
Vgs (Max)±9V
Input Capacitance (Ciss) (Max) @ Vds175 pF @ 10 V
FET Feature-
Power Dissipation (Max)800mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-70FL/MCPH3
Package / Case3-SMD, Flat Lead
