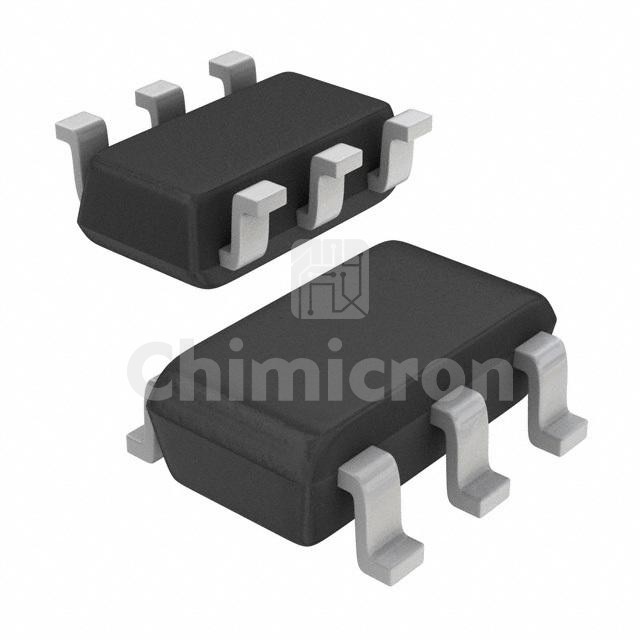

ZXMN2B03E6TA
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET N-CH 20V 4.3A SOT23-6
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:336000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ZXMN2B03E6TA Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 336000 pieces of ZXMN2B03E6TA in stock available now. Submit an inquiry for ZXMN2B03E6TA or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C4.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs40mOhm @ 4.3A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs14.5 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds1160 pF @ 10 V
FET Feature-
Power Dissipation (Max)1.1W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-23-6
Package / CaseSOT-23-6
