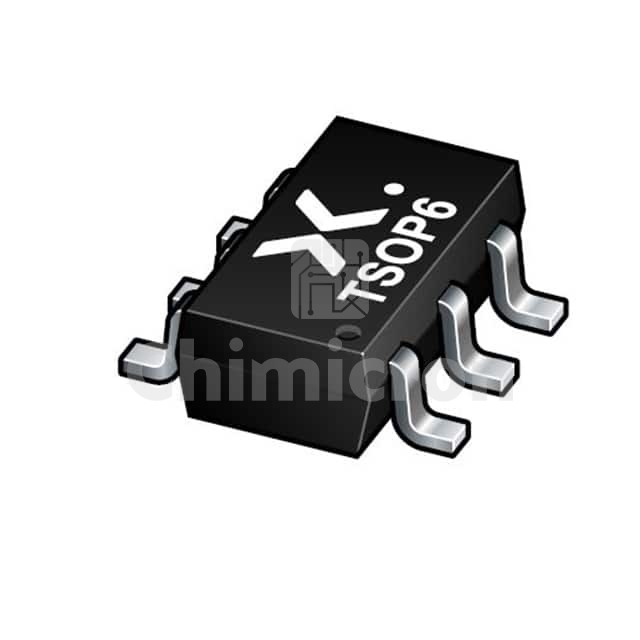

PMN42XPEAX
Manufacturer: Nexperia
Description: MOSFET P-CH 20V 4A 6TSOP
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101
In Stock:94500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PMN42XPEAX Nexperia at chimicron.com. We have 94500 pieces of PMN42XPEAX in stock available now. Submit an inquiry for PMN42XPEAX or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs46mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs17.3 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds1410 pF @ 10 V
FET Feature-
Power Dissipation (Max)500mW (Ta), 8.33W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-TSOP
Package / CaseSC-74, SOT-457
