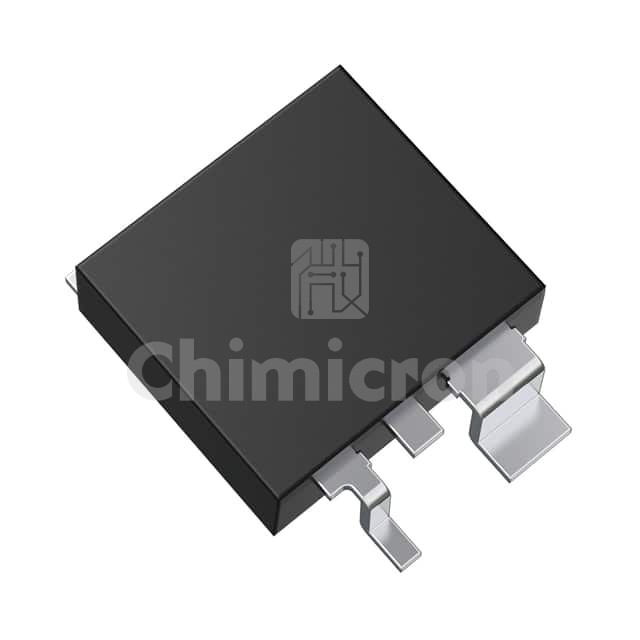

TJ200F04M3L,LXHQ
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: MOSFET P-CH 40V 200A TO220SM
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: U-MOSVI
In Stock:1000000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TJ200F04M3L,LXHQ Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 1000000 pieces of TJ200F04M3L,LXHQ in stock available now. Submit an inquiry for TJ200F04M3L,LXHQ or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesU-MOSVI
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C200A (Ta)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs1.8mOhm @ 100A, 10V
Vgs(th) (Max) @ Id3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs460 nC @ 10 V
Vgs (Max)+10V, -20V
Input Capacitance (Ciss) (Max) @ Vds1280 pF @ 10 V
FET Feature-
Power Dissipation (Max)375W (Tc)
Operating Temperature175°C
Mounting TypeSurface Mount
Supplier Device PackageTO-220SM(W)
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
