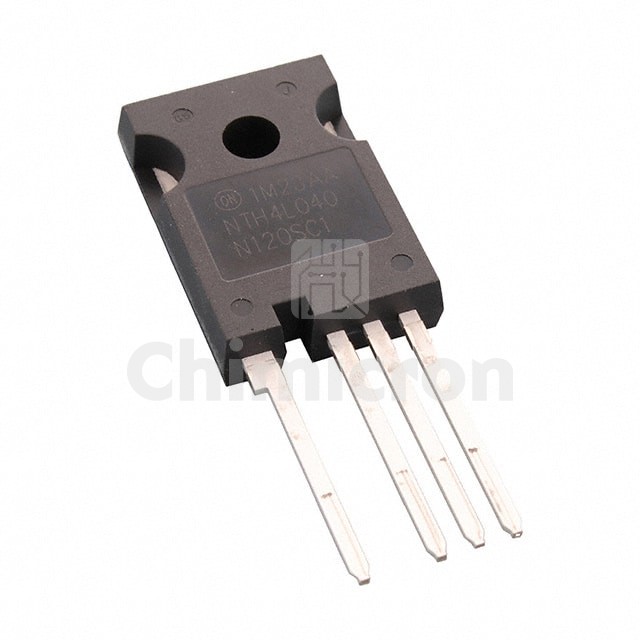

NTH4L040N120SC1
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: TRANS SJT N-CH 1200V 58A TO247-4
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:11
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NTH4L040N120SC1 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 11 pieces of NTH4L040N120SC1 in stock available now. Submit an inquiry for NTH4L040N120SC1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologySiC (Silicon Carbide Junction Transistor)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C58A (Tc)
Drive Voltage (Max Rds On, Min Rds On)20V
Rds On (Max) @ Id, Vgs56mOhm @ 35A, 20V
Vgs(th) (Max) @ Id4.3V @ 10mA
Gate Charge (Qg) (Max) @ Vgs106 nC @ 20 V
Vgs (Max)+25V, -15V
Input Capacitance (Ciss) (Max) @ Vds1762 pF @ 800 V
FET Feature-
Power Dissipation (Max)319W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-4
Package / CaseTO-247-4
