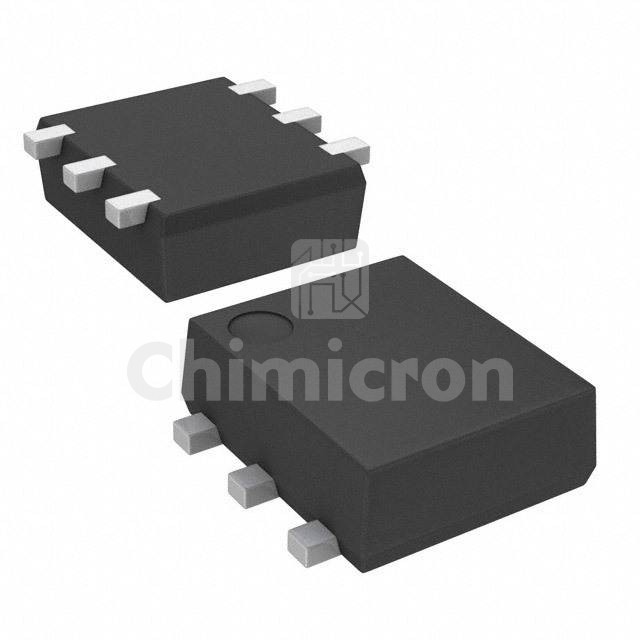

MTM861270LBF
Manufacturer: Panasonic
Description: MOSFET P-CH 20V 2A WSSMINI6-F1
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:400000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MTM861270LBF Panasonic at chimicron.com. We have 400000 pieces of MTM861270LBF in stock available now. Submit an inquiry for MTM861270LBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4V
Rds On (Max) @ Id, Vgs120mOhm @ 1A, 4V
Vgs(th) (Max) @ Id1.1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds300 pF @ 10 V
FET Feature-
Power Dissipation (Max)540mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageWSSMini6-F1
Package / Case6-SMD, Flat Leads
