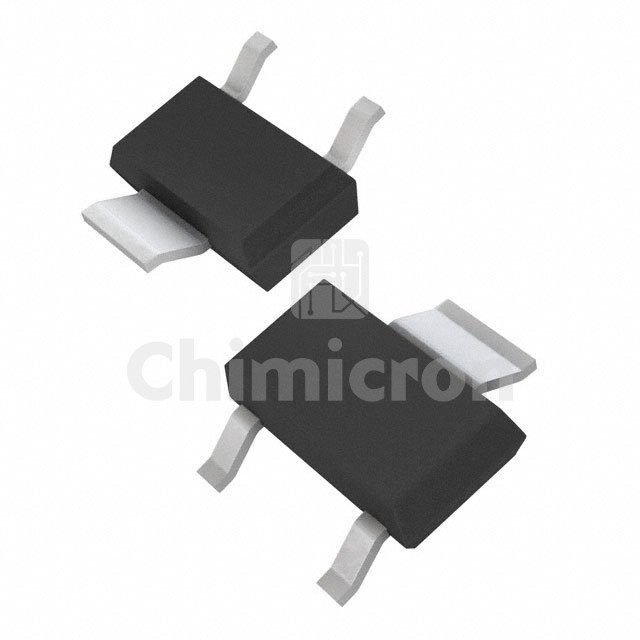

IPN60R2K1CEATMA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 600V 3.7A SOT223
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: CoolMOS™
In Stock:9450
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPN60R2K1CEATMA1 IR (Infineon Technologies) at chimicron.com. We have 9450 pieces of IPN60R2K1CEATMA1 in stock available now. Submit an inquiry for IPN60R2K1CEATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesCoolMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C3.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs2.1Ohm @ 800mA, 10V
Vgs(th) (Max) @ Id3.5V @ 60µA
Gate Charge (Qg) (Max) @ Vgs6.7 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds140 pF @ 100 V
FET FeatureSuper Junction
Power Dissipation (Max)5W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-SOT223
Package / CaseSOT-223-3
