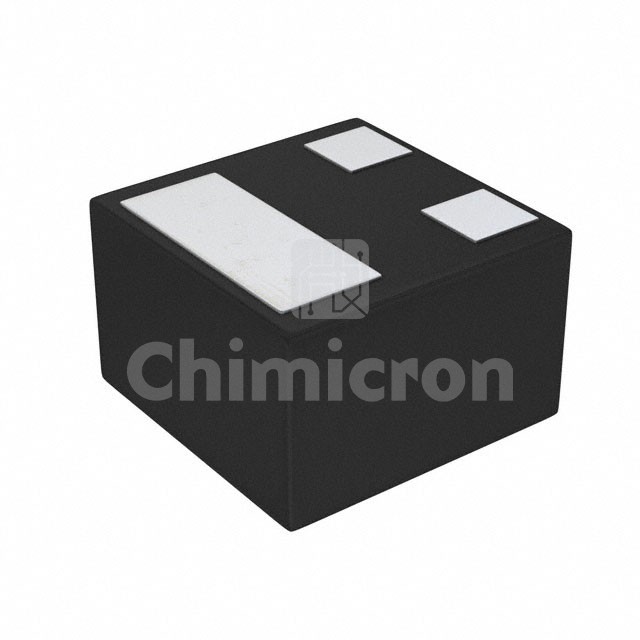

NTNS3190NZT5G
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 20V 224MA 3XLLGA
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:452229
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NTNS3190NZT5G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 452229 pieces of NTNS3190NZT5G in stock available now. Submit an inquiry for NTNS3190NZT5G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C224mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs1.4Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.7 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds15.8 pF @ 15 V
FET Feature-
Power Dissipation (Max)120mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package3-XLLGA (0.62x0.62)
Package / Case3-XFDFN
