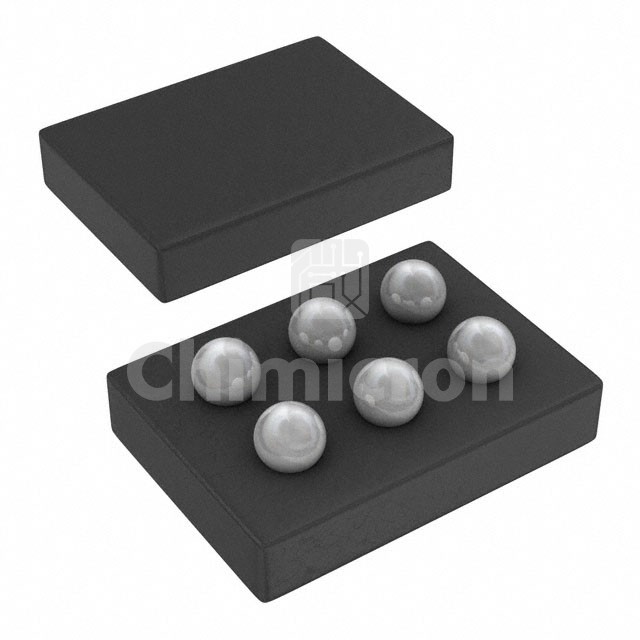

CSD23203W
Manufacturer: Texas
Description: MOSFET P-CH 8V 3A 6DSBGA
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: NexFET™
In Stock:52500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD23203W Texas at chimicron.com. We have 52500 pieces of CSD23203W in stock available now. Submit an inquiry for CSD23203W or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)8 V
Current - Continuous Drain (Id) @ 25°C3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs19.4mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs6.3 nC @ 4.5 V
Vgs (Max)-6V
Input Capacitance (Ciss) (Max) @ Vds914 pF @ 4 V
FET Feature-
Power Dissipation (Max)750mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-DSBGA
Package / Case6-UFBGA, DSBGA
