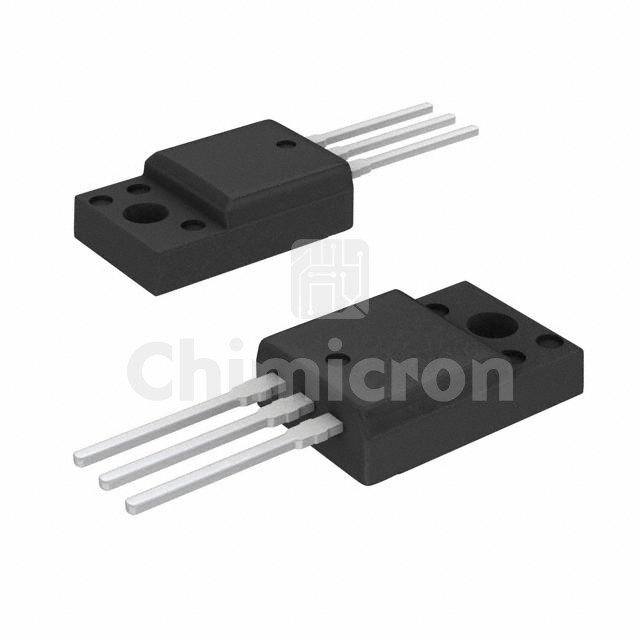

FQPF9P25
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET P-CH 250V 6A TO220F-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: QFET®
In Stock:6691
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FQPF9P25 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 6691 pieces of FQPF9P25 in stock available now. Submit an inquiry for FQPF9P25 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesQFET®
PackageTube
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)250 V
Current - Continuous Drain (Id) @ 25°C6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs620mOhm @ 3A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs38 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds1180 pF @ 25 V
FET Feature-
Power Dissipation (Max)50W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220F-3
Package / CaseTO-220-3 Full Pack
